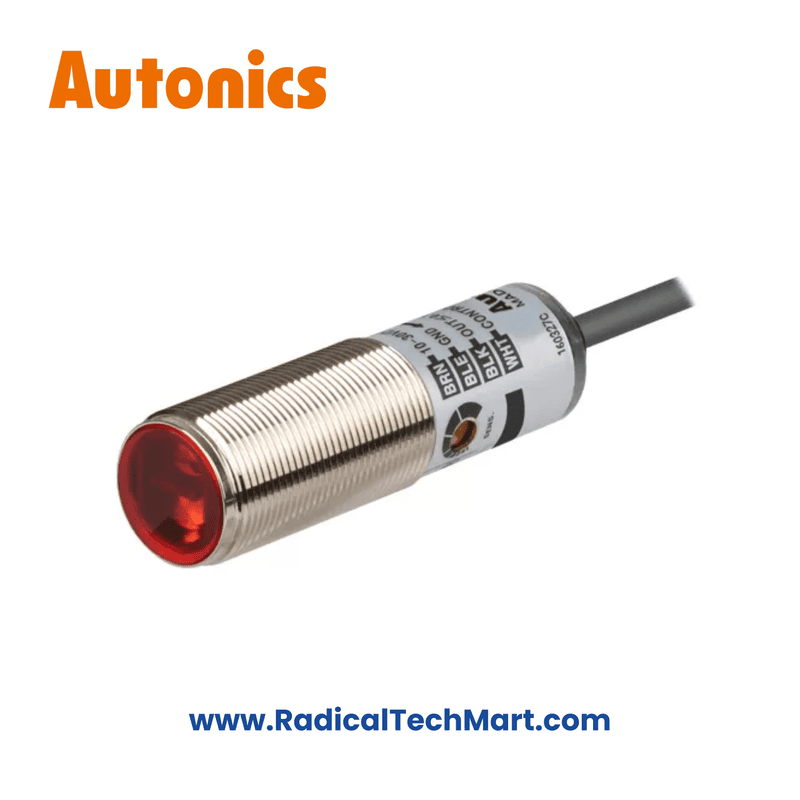

BRQM1M-DDTA-P Autonics Photoelectric Sensor
Non-returnable
₹2,540.00
Product Details
| Product | Description |
|---|---|
| Brand | Autonics |
| Model Number | BRQM1M-DDTA-P |
| Sensing type | Diffuse reflective type |
| Sensing distance | 1m |
| Sensing target | Opaque, Translucent material |
| Light source | Red LED(660nm) |
| Response time | Max. 1ms |
| Power supply | 10-30VDC ⎓ ±10%(ripple P-P: max. 10%) |
| Current consumption | Max. 30mA |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Selectable Light ON or Dark ON by control wire (white) |
| Control output | PNP open collector |
| Connection type | Ø4mm, 4-wire, 2m (emitter of through-beam type: Ø4mm, 2-wire, 2m) (AWG26, core diameter: 0.52mm, number of cores: 20, insulator out diameter: Ø1mm) |
| Environment Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment Ambient temperature | -25 to 60℃, storage: -30 to 70℃ |
| Protection structure | IP67(IEC standard) |
| Environment Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Hysteresis(distance) | Max. 20% at rated sensing distance |
| Material | Case: brass, Ni-plate •Lens, Lens cover: polymethyl methacrylate acrylic |
| Accessories Common | M18 fixing nut: 2, adjustment screwdriver |
| Weight | Approx. 150g(approx. 70g) |
| Approval | CE |
